BB1 pumps Introduction

BB1 pumps They are one of the types of centrifugal pumps that are used in industrial applications. These types of pumps are usually used to move liquids with low and medium viscosity, such as crude oil, petroleum products, and chemicals.

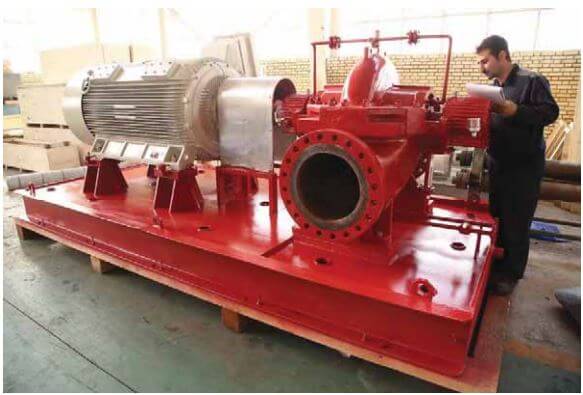

Design and structure of  BB1 pumps

Single-Stage and Two-Stage Pumps: BB1 pumps can be designed as single-stage or two-stage, depending on the head or output pressure required.

Horizontal axis: BB1 pumps are designed horizontally.

Two-piece body: The pump body consists of two parts that are easily accessible and maintained. This feature makes it easy to access internal components in case of maintenance.

Supports: The supports of BB1 pumps are usually located on both sides of the axis, which increases stability and reduces vibrations caused by pump operation.

Two-suction impeller: In many BB1 pump models, a two-suction impeller is used, which increases efficiency and reduces vibration.



Attributes of BB1 pump

1. High stability: due to the type of design and the use of two-way supports on both sides of the impeller, BB1 pumps have high stability.
2. High efficiency: These pumps are designed to transfer large volumes of liquids with high efficiency.
3. Easy maintenance: The two-piece body design and easy access to internal components make maintenance and repair of these pumps easy.
4. Optimum energy consumption: Due to the optimal design and the use of modern technologies, energy consumption in BB1 pumps has been reduced compared to other pumps.



Applications of BB1 pumps

Oil and gas industry: Used to move crude oil, refinery products and chemicals.

Power plants: used for cooling and water transfer systems.

Chemical industry: for handling various chemicals.

Water and sewage: It is used in water supply and sewage treatment systems.

Advantages of  BB1 pumps

Long life: due to the durable design.

Flexibility in application: the ability to be used in various industrial conditions and applications.

Reducing maintenance costs: due to the ease of access to components and reducing the need for frequent replacement of parts.

Disadvantages of BB1 pumps

Initial cost: BB1 pumps may have a higher initial cost than some other pumps.

Required space: Due to the horizontal design and large body, they require more space than some vertical pumps.



   BB1 pumps are known as one of the most widely used and efficient options in various industries. According to the mentioned features and advantages, these pumps are the right choice for applications that need to move a large volume of liquids with high stability and efficiency.
